Rotacinis stalas

Description

If you want not to stop the production line when the worker wants to take a breather, has extra work or simply does not manage to complete the work on time, and the production accumulates in the production line. You don't want to hire extra staff to get the job done faster and without complaints. You need a rotary table that allows the worker to step away from the machine without stopping the production process. If you are not sure whether this storage device is useful for you, we will provide some tips to help you decide. MB DIAC can offer production tables with various functions at an attractive price: filing, intermediate storage, final storage.

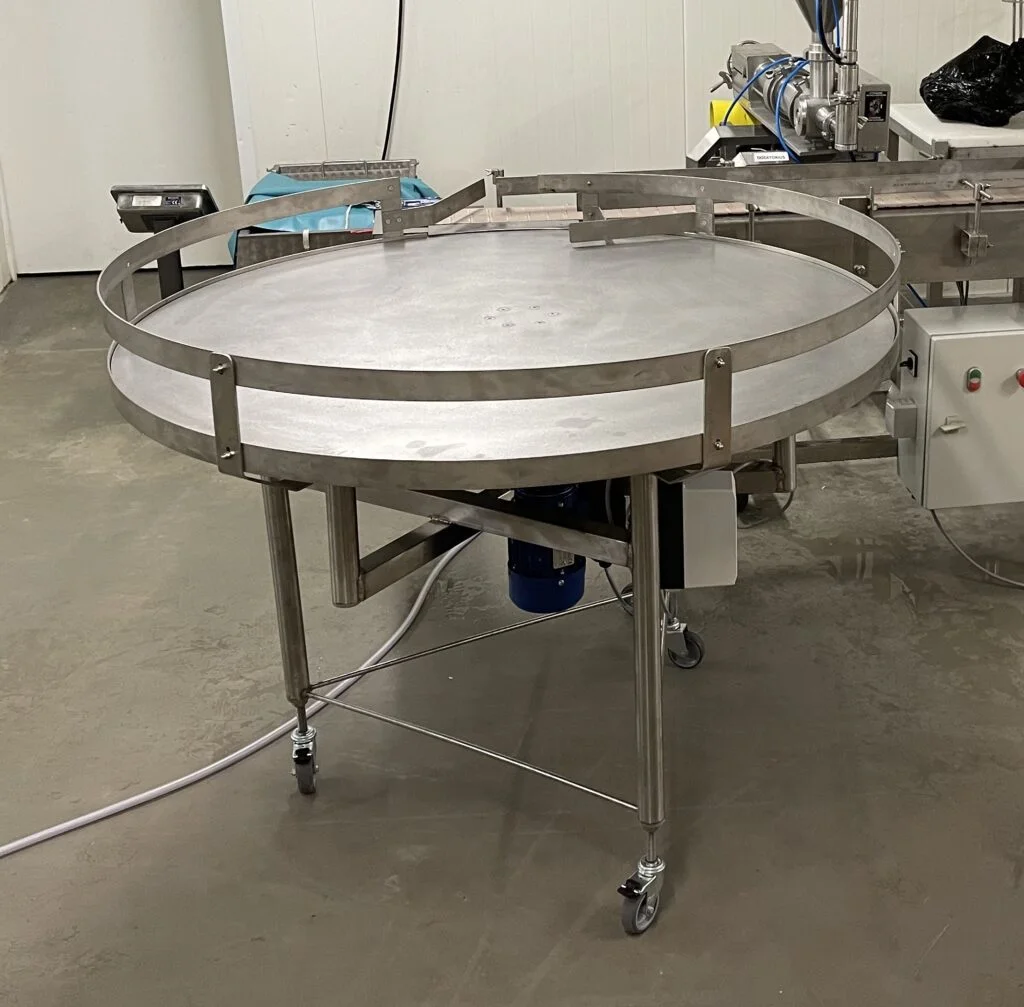

    Rotary table

    What is the benefit to you?

    You won't need to hire additional workers to get the job done faster. Its operation is simple, the rotary table will only need to be adapted to the production line. Production will not accumulate in the production line, work will not be carried out. After the production fills the table, the worker will only have to come and unload it.

    What factors should be considered when choosing production tables?

    There are several factors to consider when choosing a rotary table. First of all, it is necessary to assess the load that the rotary table must withstand. This is done by knowing the weight of the product and how much production can accumulate in a certain period of time. Let's say until the worker pushes the loaded product cart to the product storage areas and returns back to the device.

    Another factor to consider is the environment in which the device is used. If the environment is aggressive, with a lot of moisture and heat, ordinary metal starts to rust over time, in this case you need a stainless steel storage device. Also in the food, chemical or pharmaceutical industry, it is required that the product does not come into contact with ferrous metal.

    If the table is used as a feeding device, it is necessary to calculate how many units of products fit on the table, at what speed the product must be fed to the next stage of production. After calculating everything, we will get the time after which we have to load the product on the rotary table.

    If a device performing one function runs faster than another function, in this case, you can use the rotary table for intermediate storage, inserting it in the middle of the production line, so as not to stop the work of individual production processes.

    At the end of the production process line, a rotary table is used to avoid stopping the machine or the line when the worker does not have time to perform all the necessary operations. By using these rotary tables in production, you can reduce the number of workers required, with only a supervising operator to ensure that the feed table has enough production and the storage table has free space. The employee will have time for packing and storage, the work will not be delayed and will be completed on time and without errors.

    TECHNICAL DATA
    ParameterMeaningOptionally
    TitleRotary table
    General dimensions of the device (diameter x height, mm)1211×965
    Working diameter1200
    Working height850±25
    Table top thickness4mm
    Fixing the deviceLegs/castors
    Machine weight (kg)90
    Maximum load (kg)150Up to 200
    Electric voltage(V)230±10%400±10%
    Power configurationsingle phasethree phase
    Electric current (amps)0,50,2
    Frequency Hz50/60
    Power of the device (kW)0,12Up to 0.55
    Rotation speed (rmp)3/5/90,5
    Engine speed1380
    MaterialStainless steel, AISI304/AISI316black metal
    IP tightness classIP56
    CertificationCE

    Advantages:

    Rotacinis stalas
