Birių produktų dozatorius - svarstyklės

Description

This is a great device to save more time when dispensing products. You will not need employees to weigh and dose the product, this bulk product dispenser will do everything, you will dose a large amount of product faster and easier. You just need to pour the dosed amount into the containers. This dispenser is designed to dispense bulk products such as coffee, flour, grits, fertilizers, etc.

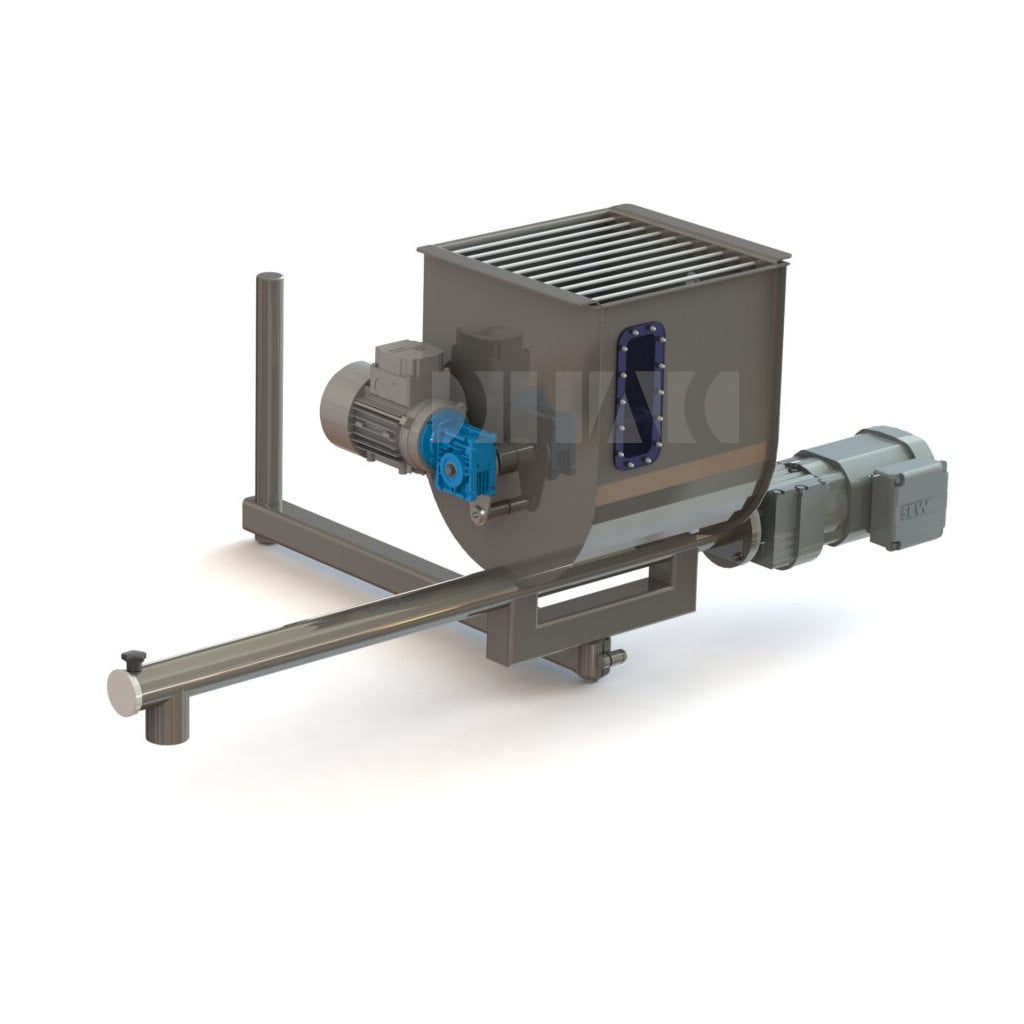

    Bulk product dispenser - scales

    What is the benefit to you?
    There will be no need to hire additional workers to make the work faster. This bulk product dispenser is very easy to use, you only need to determine the weight you would like the machine to dose and pour the product into the hopper, it will be easy to train the employee who will be responsible for its maintenance. He does not need rest, his work does not slow down during the day, the work will go smoothly and quickly. This dispenser does not take up much space, so you can use it in a small company.

    How to choose?
    In order to choose which dispenser you need, you need to know what amount you want to dose, if the quantities are large and you want the dosed product to be more, you can choose a 4-channel dispenser, if your company is smaller and there is less product for dosing, you can choose a 2-channel dispenser.

    How does it work?
    The bulk product dispenser has one hopper and channels that can be produced as needed, they can be from 2 to 4, the more channels, the higher the productivity. The chute itself vibrates with the help of an electromagnet, so the product falls into a pocket that is placed on the scale, when it reaches the scale it is weighed as needed, say 500g, then the product falls from the hopper up to 500g and when it reaches the set weight, it stops and is automatically poured into containers. Since this device operates automatically, only a supervising operator is required at the workplace.

    TECHNICAL DATA
    ParameterMeaning
    TitleBulk product dispenser (scale)
    General dimensions of the device (diameter x height, mm)965x1030x950
    Fixing the deviceFeet (anti-vibration pads)
    Machine weight (kg)40kg
    Maximum load (kg)80kg
    Electric voltage(V)230v
    Electric current (amps)2,4
    Frequency Hz50
    Volume70l
    Power of the device (kW)1,3kw
    Dosage range100 – 2000g
    Accuracy±1%
    Rotation speed (rmp)
    Device configuration1-4 weighing pockets
    Air output11 liters/min
    Weather is required6bar
    Engine speed
    MaterialStainless steel AISI 304`, black pl.
    ControlTouch screen
    IP tightness classIP56
    CertificationСE

    Advantages:
